Sumitube® W3B2, W3B2(4X)
Flame retardant dual wall polyolefin tubing. Flexible with inner wall of hot melt adhesive. High shrink ratio eases installation on transitions with large diameter gaps.
Characteristics
• Operating Temperature: -55°C–125°C
• Min. Shrink Temperature: 110°C Shrinking start at 65°C
- Shrink Ratio: 3:1, 4:1
• Dielectric Strength: 30 kV/mm
• Standard Colour(s): Black
Also colored on request
• Specifications:
UL224 125°C 600V, CSA CC22.2 No.198.1-99 125°C 600V (W3B2 only)
Characteristics
• Operating Temperature: -55°C–125°C
• Min. Shrink Temperature: 110°C Shrinking start at 65°C
- Shrink Ratio: 3:1, 4:1
• Dielectric Strength: 30 kV/mm
• Standard Colour(s): Black
Also colored on request
• Specifications:
UL224 125°C 600V, CSA CC22.2 No.198.1-99 125°C 600V (W3B2 only)
Altri Dettagli
Application Fields

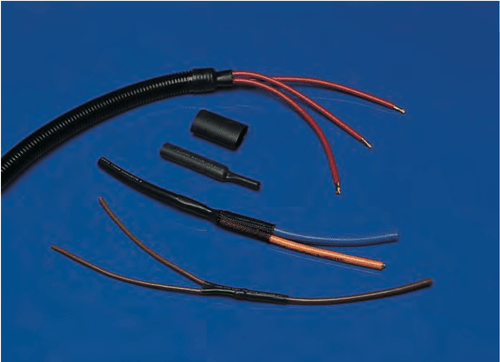

For moisture protection and environmental sealing of harnesses, connectors and ultrasonic splices where a flame retardant jacket is required.
