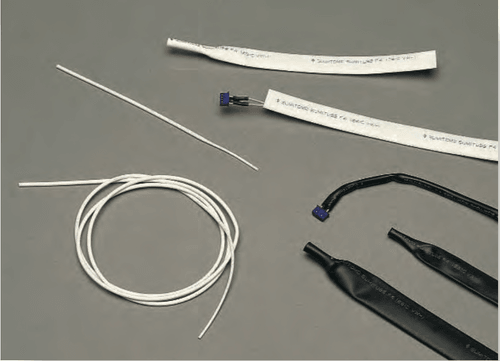

Sumitube® F4(Z)
Very flexible highly flame retardant polyolefin tubing. UL and CSA recognised and Marked. Extra thin wall for faster shrinkage and handling in tight area. Free of PBB’s and PBBO’s.
Characteristics
• Operating Temperature: -55°C–125°C
• Min. Shrink Temperature: 90°C Shrinking start at 60°C
• Shrink Ratio:
• Dielectric Strength:
• Standard Colour(s):
2:1
26 kV/mm Black
• Specifications:
UL224 125°C 300V VW-1, CSA C22.2 No.198.1 125°C 150V OFT
• Marking:
125°C VW-1 SUMITOMO-K
SUMITUBE F4(Z) CAT 942 CSA 125°C VW-1 -F-
Characteristics
• Operating Temperature: -55°C–125°C
• Min. Shrink Temperature: 90°C Shrinking start at 60°C
• Shrink Ratio:
• Dielectric Strength:
• Standard Colour(s):
2:1
26 kV/mm Black
• Specifications:
UL224 125°C 300V VW-1, CSA C22.2 No.198.1 125°C 150V OFT
• Marking:
125°C VW-1 SUMITOMO-K
SUMITUBE F4(Z) CAT 942 CSA 125°C VW-1 -F-
Altri Dettagli
Application Fields
For compact jacketing of sensitive components in tight areas. Cable harnessing, insulation, dirt and dust protection in electronics and other temperature sensitive cables or components.
