Sumitube® F2(Z)
Very flexible highly flame retardant polyolefin tubing. UL and CSA recognised and
marked. Low shrink temperature. Free of PBB’s and PBBO’s
Characteristics
• Operating Temperature: -55°C–125°C
• Min. Shrink Temperature: 90°C Shrinking start at 60°C
• Shrink Ratio:
• Dielectric Strength:
• Standard Colour(s):
2:1
40 kV/mm Black
• Specifications:
UL224 125°C 600V VW-1, CSA C22.2 No. 198.1 125°C 600V
• Marking:
125°C VW-1 SUMITOMO-K SUMITUBE F2(Z) CAT 940
CSA 125°C VW-1 -F- Made in SFP
125°C VW-1 SUMITOMO-G SUMITUBE F2(Z) CAT 940
CSA 125°C VW-1 -F- Made in SESP
marked. Low shrink temperature. Free of PBB’s and PBBO’s
Characteristics
• Operating Temperature: -55°C–125°C
• Min. Shrink Temperature: 90°C Shrinking start at 60°C
• Shrink Ratio:
• Dielectric Strength:
• Standard Colour(s):
2:1
40 kV/mm Black
• Specifications:
UL224 125°C 600V VW-1, CSA C22.2 No. 198.1 125°C 600V
• Marking:
125°C VW-1 SUMITOMO-K SUMITUBE F2(Z) CAT 940
CSA 125°C VW-1 -F- Made in SFP
125°C VW-1 SUMITOMO-G SUMITUBE F2(Z) CAT 940
CSA 125°C VW-1 -F- Made in SESP
Altri Dettagli

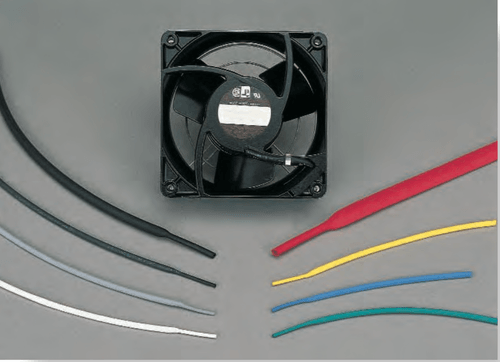

Application Fields
All general purpose applications in electronic and electromechanical industries. Light harnesses, bundling, colour coding, insulation of soldered or crimped connectors in electronic equipment.
