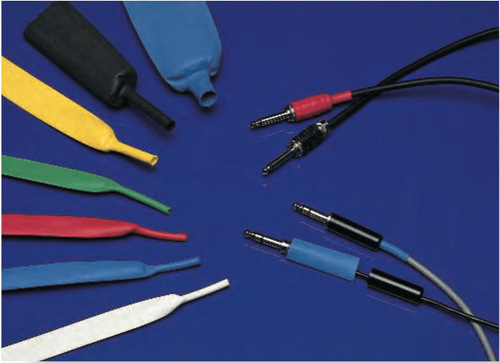

Sumitube® B2(3X), B2(4X)
Very flexible highly flame retardant high grade polyolefin tubing. UL and CSA recognised. High shrink ratios cover large bore differences, such as harness with pre-installed connections and pre-fabricated cables. Characteristics
• Operating Temperature: -55°C–135°C
• Min. Shrink Temperature: 90°C Shrinking start at 60°C
• Shrink Ratio: 3:1, 4:1
• Dielectric Strength: 37 kV/mm
• Standard Colour(s):
Black, Red, Yellow, Blue, White, Yellow-green striped (B2(Y/G, 3X)); Black (B2(4X))
• Specifications: UL224 125°C 600V VW-1, CSA C22.2 No. 198.1 125°C 600V OFT (B2 (3X) only)
• Operating Temperature: -55°C–135°C
• Min. Shrink Temperature: 90°C Shrinking start at 60°C
• Shrink Ratio: 3:1, 4:1
• Dielectric Strength: 37 kV/mm
• Standard Colour(s):
Black, Red, Yellow, Blue, White, Yellow-green striped (B2(Y/G, 3X)); Black (B2(4X))
• Specifications: UL224 125°C 600V VW-1, CSA C22.2 No. 198.1 125°C 600V OFT (B2 (3X) only)
Altri Dettagli
Application Fields
Repair of cables with installed connectors, electrical insulation especially to cover large diameter gaps, bundling and harnessing. Yellow-green striped version where identification of the ground lead
is intended.
