Sumitube® A2, A2(3X)
Halogen free flexible polyolefin hologen free tubing. Good insulation and chemical properties. Clear colour allows marker tags/identification marks to be viewed through the tube after installation.
Characteristics
• Operating Temperature: -55°C–135°C
• Min. Shrink Temperature: 110°C
Shrinking start at 80°C
• Shrink Ratio: 2:1
• Dielectric Strength: 46 kV/mm
• Standard Colour(s): Transparent
- Specifications: SAE-AMS-DTL-23053/5 class 2, DEF-STAN 59-97 Type 2B (A2 only)
Characteristics
• Operating Temperature: -55°C–135°C
• Min. Shrink Temperature: 110°C
Shrinking start at 80°C
• Shrink Ratio: 2:1
• Dielectric Strength: 46 kV/mm
• Standard Colour(s): Transparent
- Specifications: SAE-AMS-DTL-23053/5 class 2, DEF-STAN 59-97 Type 2B (A2 only)
Altri Dettagli
Application Fields

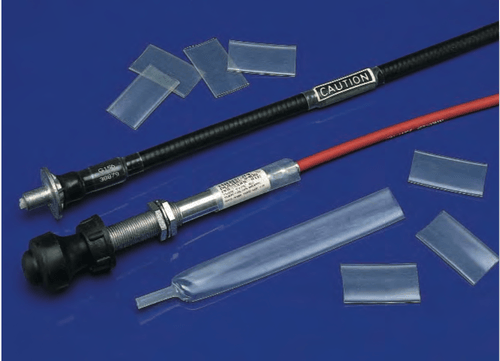

For all general purpose applications, covering capacitors, bundling and jacketing of cables where visual inspection is required. Positioning of marking tags on hoses or other components.
